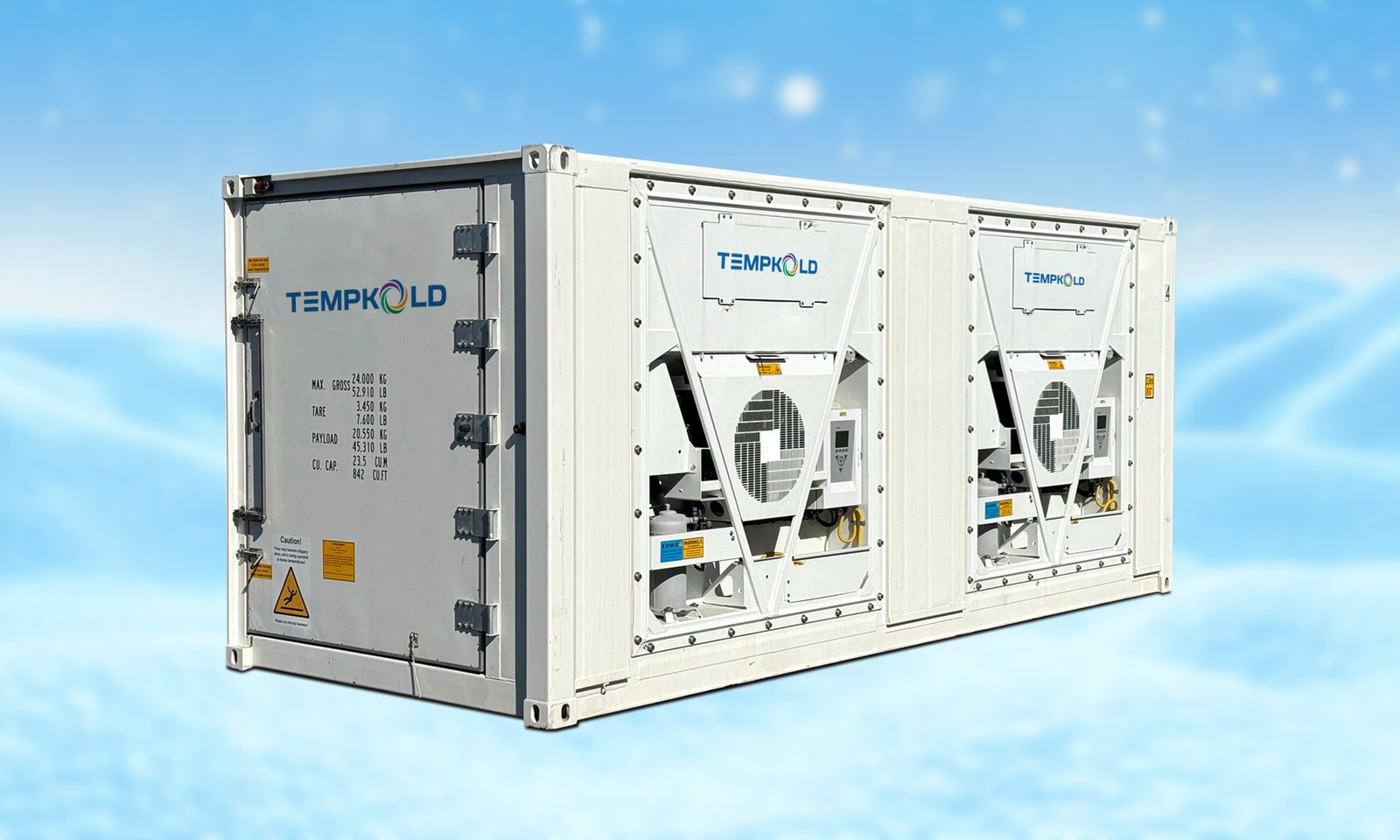

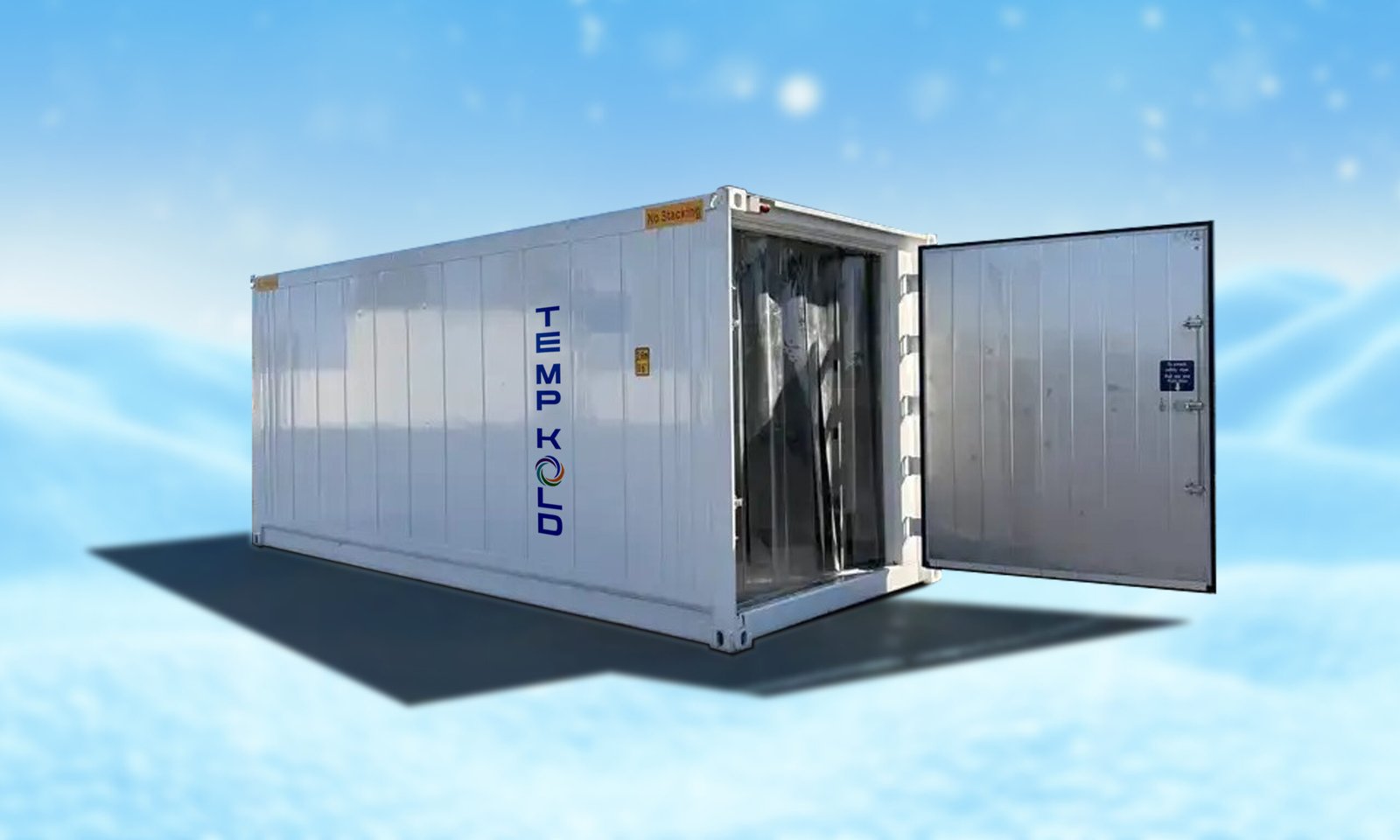

20ft Blast Freezer Container -40°F to 70°F
$49,999.99
- Cold storage blast freezer
- Temperature range -40°F to 70°F
- Requires two power supplies, 460 V 3-phase or 230 V 3-phase, with an optional transformer
- Easy-open butcher door
- Flat floor
- LED Interior lights
- Walk-in curtains
- Total capacity of 12,600 Kcal/hr(49,600 Btu/hr) at ambient 100°F (37.8°C) and evaporator return air temperature 0°F (-18°C)
- Calculated on average values, 22,000 lbs of fish will be cooled to 0°F (-18°C) core temperature from 41°F (5°C) in approx 44 hours.
Description
- Cold storage blast freezer
- Temperature range -40°F to 70°F
- Requires two power supplies 460 V 3 phase or 230 V 3 phase with optional transformer
- Easy open butcher door
- Flat floor
- LED Interior lights
- Walk in curtains
- Total capacity of 12,600 Kcal/hr(49,600 Btu/hr) at ambient 100°F (37.8°C) and evaporator return air temperature 0°F (-18°C)
- Calculated on average values 22,000 lbs of fish will be cooled to 0°F (-18°C) core temperature from 41°F (5°C) in approx. 44 hours.
Internal capacity
23.8m3 (841 Cu.ft)
Door opening dimensions
Width 1,737 0/-5 mm (5’-8 25/64” 0/-3/16”)
Height 2,232 0/-5 mm (7’-3 7/8” 0/-3/16”)
Cargo access height 2,232 0/-5 mm (7’-3 7/8” 0/-3/16”)
Ratings
Max. Gross Weight 24,000 kg (52,910 lbs)
Tare Weight 2710 kg (5980 lbs)
Tare Weight (incl. Unit 740 kg) 3450 kg ( 7600 lbs)
Max. Payload 20550 KG (45310 lbs)
Insulation
Item Thickness Density
Roof 90 mm 40 kg/cu.m
Side walls 65 mm 45-50 kg/cu.m
Door panels 81 mm 45-50 kg/cu.m
Floor 101/51 mm 45-50 kg/cu.m
Heat leakage value
Umax = 30 kcal/deg.c.hr. at the mean wall temperature 293 K (20 °C)
Max. air leakage value
Qmax = 14 m3/hr. (incl. reefer unit max. 0.5m3/h) measured at 250+-10Pa.
Container Warranty
The container shell, including the structural frame, walls, roof, and doors, is covered by a 10-year limited warranty.
This warranty protects against structural defects and corrosion under normal operating conditions.
Refrigeration Machinery Warranty
The refrigeration machinery is brand-new and backed by a 1-year factory warranty.
Coverage includes the compressor, condenser coil, evaporator coil, electronic controller, and other major refrigeration system components.
Warranty Details
Routine maintenance, consumable items (such as door gaskets, light bulbs, and filters), and damages caused by misuse, accidents, or lack of maintenance are not covered.
Warranty service for the refrigeration machinery is provided through the manufacturer’s authorized service network.
Optional extended service plans are available upon request.
This dual warranty provides long-term peace of mind for both the container structure and the refrigeration system.
Additional information
| External(MM) Length | 2,991 |
|---|---|
| External(MM) Width | 2,438 |
| External(MM) Height | 2,591 |
| Internal (MM) Length | 2,360 |
| Internal (MM) Width | 2,292 |
| Internal (MM) Load height | 2,310 |
| Area | 5.41 m2 |
| Cubic capacity | 12.50 m3 |
| Pallets | 4 EUR |
| Tare Weight | 2,060 Kg |
| Max Weight | 10,160 kg |
| Door opening (mm) Width | 2,196 |
| Door opening (mm) Height | 2,251 |
| Floor loading | 3,000 kg/m2 |
