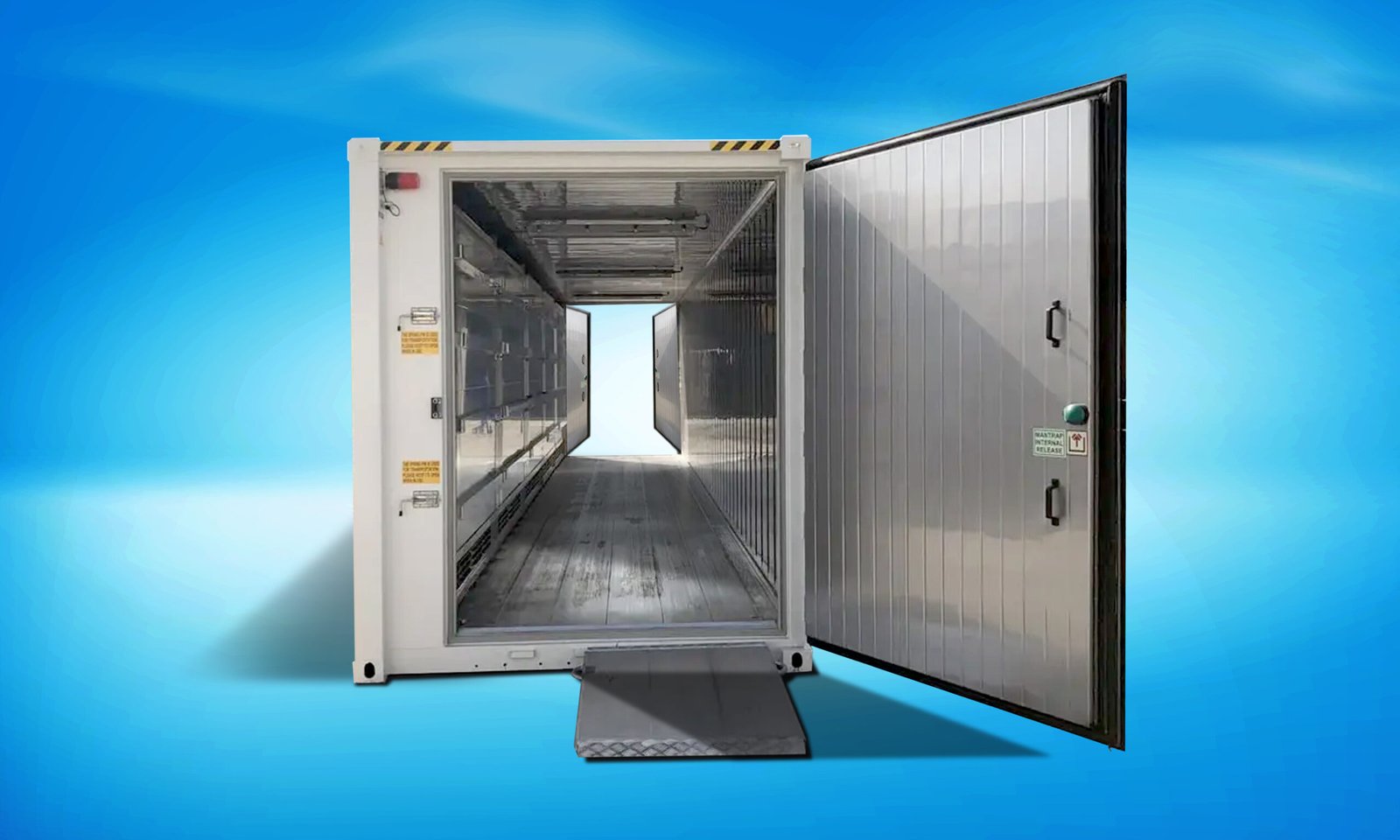

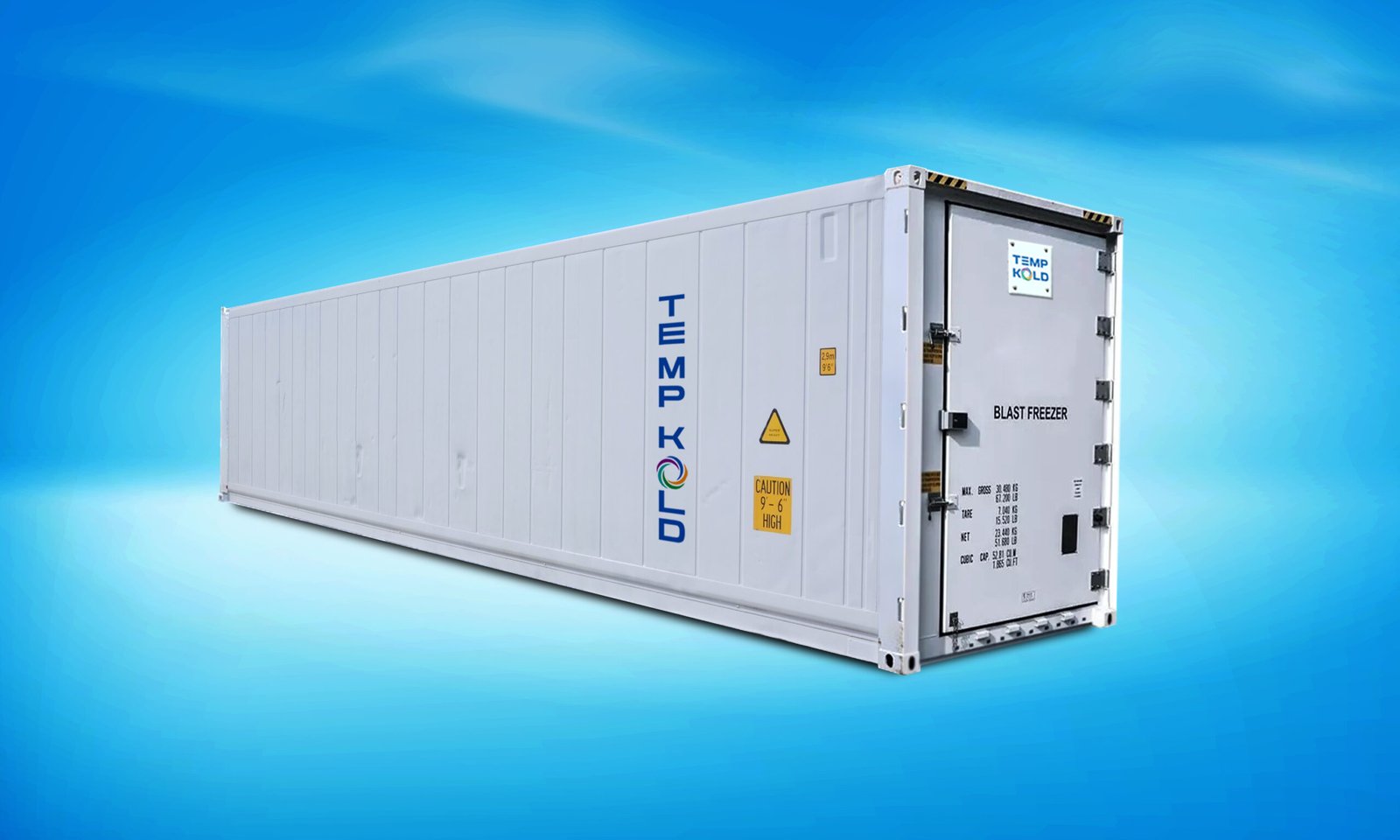

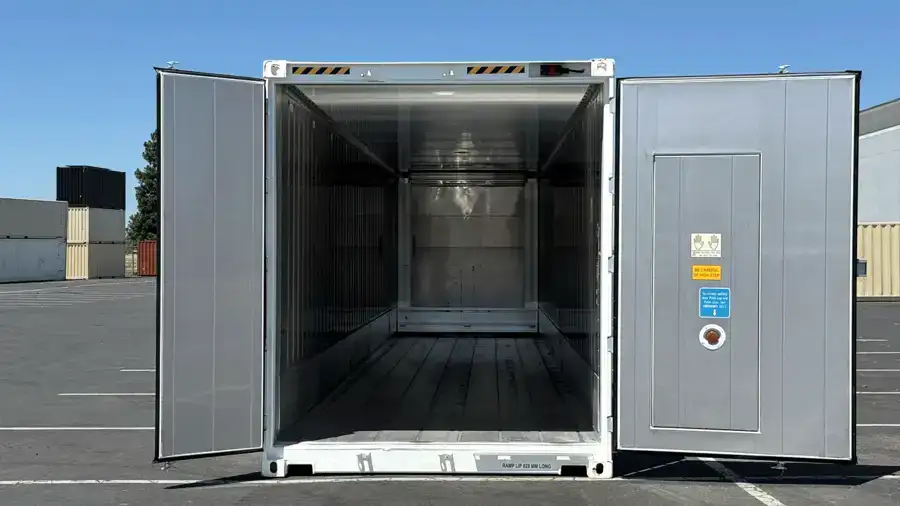

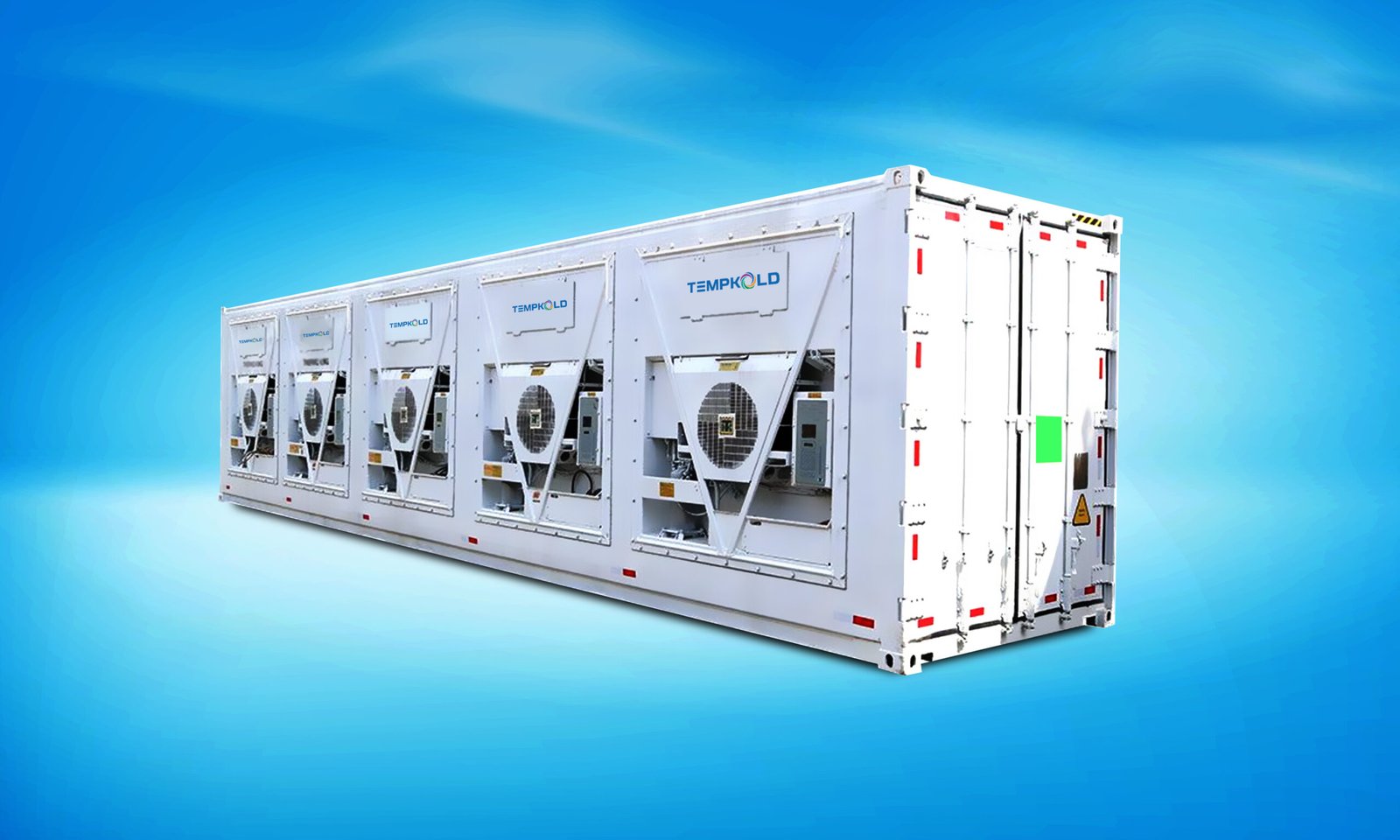

40ft SuperFreezer -76°F to 30°F
$64,999.99
These 40ft blast freezer containers are the perfect solution for quickly freezing highly valuable seafood, meats, and pharmaceuticals! With an impressive ability to reach a steady interior temperature of -60°C (-76°F), these shipping container freezers are designed to give you the best results possible. With an evaporator fan designed for high-pressure temperature drops and an adjustable ceiling fan to rapidly lower cargo temperature, you can trust these containers to preserve the value of your items. Invest in these blast freezer containers today, and you won’t be disappointed!
These 40ft blast freezer containers are ideal for quickly freezing high-value seafood, meats, and pharmaceuticals! Designed to reach a steady interior temperature of -60°C (-76°F), these shipping container freezers feature an evaporator fan designed for high-pressure temperature drops and an adjustable ceiling fan to rapidly lower cargo temperature.
Description
These 40ft blast freezer containers are the perfect solution for quickly freezing highly valuable seafood, meats, and pharmaceuticals! With an impressive ability to reach a steady interior temperature of -60°C (-76°F), these shipping container freezers are designed to give you the best results possible. With an evaporator fan designed for high pressure temperature drops and an adjustable ceiling fan to rapidly lower cargo temperature, you can trust these containers to preserve the value of your items. Invest in these blast freezer containers today and you won’t be disappointed!
These 40ft blast freezer containers are ideal for quickly freezing high-value seafood, meats, and pharmaceuticals! Designed to reach a steady interior temperature of -60°C (-76°F), these shipping container freezers feature an evaporator fan designed for high pressure temperature drops and an adjustable ceiling fan to rapidly lower cargo temperature.
Plus, you can customize the freezer containers to fit your needs by taking advantage of our custom fabrication options. Moreover, these 40′ -60°C ( (-76°F) freezer containers can be delivered to any location nationwide.
Specifications
| External dimensions | Internal dimensions | Door dimensions | Weight |
| Length: 40′ (12.19 m) | Length: 39′ 3” (11.96 m) | Width: 7′ 8” (2.34 m) | 9,880 lbs. (4,481 kg) |
| Width: 8′ (2.44 m) | Width: 7′ 8” (2.34 m) | Height: 7′ 5” (2.26 m) | |
| Height: 8′ 6” (2.62 m) | Height: 7′ 10” (2.38 m) |
Preservation
- All steel parts shall be shot-blasted to Swedish Standard Sa 2.5.
- Polyurethane contact surfaces a) Main foaming area Special foam adhesive will only be applied to inner linings contact surfaces for good adhesion with PU (at Ultra-low temperature). Outer panel surface will still use a normal adhesive primer or foam bond. b) Residual foaming area of Corten parts Polyamide epoxy primer will be applied to the insulation foam contact surface.
- All CORTEN steel out surface shall be primed with 30 microns of Zinc rich primer, 40 microns of Epoxy zinc phosphate primer and 50 microns of Acrylic Topcoat.
- All MGSS parts (roof and side panel) shall be primed 40 microns of Epoxy zinc phosphate primer and 60 microns of Acrylic Topcoat.
- The steel door panel shall be painted 40 microns of Epoxy zinc phosphate primer and 50 microns of polyurethane topcoat.
- Undercoating shall be primed with 30 microns zinc-rich primer 40 microns Epoxy zinc phosphate primer and 150microns of Tectyl 121B. Topcoat (Including steel door panel) Color: white (RAL9010). Paint supplier: KCC /HEMPEL (except shop primer)
Warranty Details
- Paint guarantee: 5 years, except as otherwise stated in the purchase order, and based on standard “RE 3” of the “European degree of rusting standards”. Normal wear / tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.
- The warranty shall be applied to all kinds of faults or failures affecting more than 10% of the painted surface and partial or total repainting shall be assured for the container(s) at the manufacturer’s expense.
- Decal guarantee: 7 years
- Other guarantees: All containers (except gaskets, sealant, adhesive, special PVC, and insulating foam) are guaranteed by the manufacturer against any defects or omissions in construction, poor workmanship, defective materials within 1 year after delivery. Delamination caused by mishandling, missecuring, misloading, impact, accident, fire, or acid spillage is not covered by this warranty. A manufacturing defect is established if (a)The adhesion primer or foam bond between the METAL and the foam is separating from the METAL. (primer remains on the foam) (b) The adhesion primer or foam bond is separating within itself (primer remains on the METAL and the foam) (c) The adhesion primer or foam bond is separating from the foam (primer remains on the METAL without a foam cell layer on its surface) The warranty shall be applied to delaminations if the structural integrity is compromised by more than 3sq. meters (as per the latest version of IICL dated June 2005, page 31), as long as neither the length nor the width of the affected area exceeds 1.73 meters. Any damages caused by mishandling, mis-securing, mis-loading, impact and other natures of ancient are excluded. Those materials that need withstand ultra- low temperature, such as gaskets, sealant, adhesive, special PVC and insulating foam, the manufacturer don’t supply quality and using time guarantee.
Additional information
| External(MM) Length | 2,991 |
|---|---|
| External(MM) Width | 2,438 |
| External(MM) Height | 2,591 |
| Internal (MM) Length | 2,360 |
| Internal (MM) Width | 2,292 |
| Internal (MM) Load height | 2,310 |
| Area | 5.41 m2 |
| Cubic capacity | 12.50 m3 |
| Pallets | 4 EUR |
| Tare Weight | 2,060 Kg |
| Max Weight | 10,160 kg |
| Door opening (mm) Width | 2,196 |
| Door opening (mm) Height | 2,251 |
| Floor loading | 3,000 kg/m2 |
